The plough can be kept in a stable position against side movements due to land conditions.

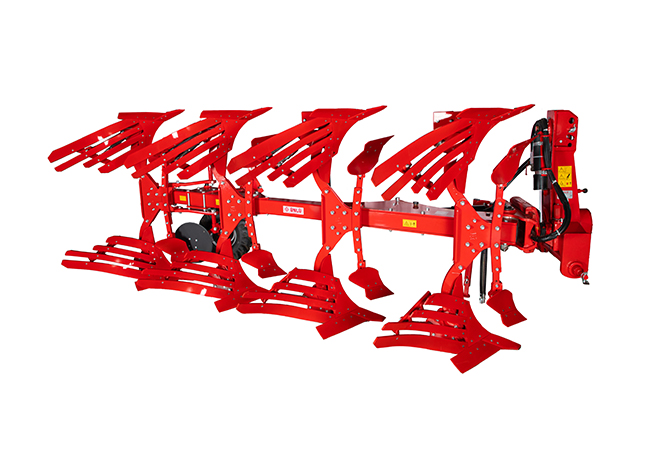

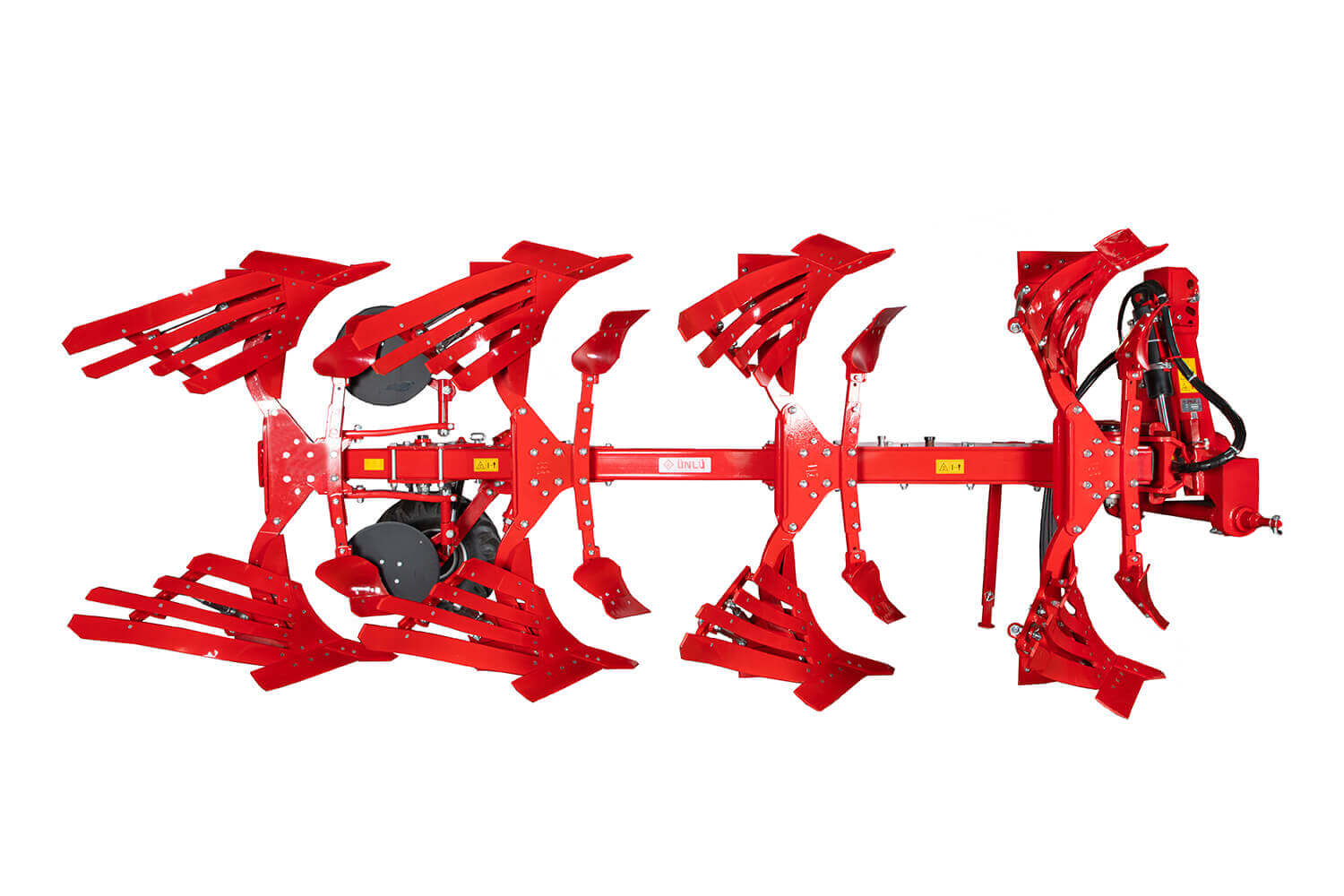

POLLUX MH
Mounted Reversible Plough with HydraSafe system
Mid weight mounted reversible ploughs allow easy and practical ploughing. Turning over side to side, the operation is fast and uninterrupted.
BRAND:
UNLU
CATEGORY:
Mounted Series
SHARE:
Advantages
- HydraSafe hydraulic stone release system
- Mechanic furrow width adjustment system via an adjusting lever
- Mechanic furrow angle adjustment via adjusting eyes
- Easy turnover from side-to-side thanks to solid hydraulic system
- Ideal for a wide range of tractors according to your need from 2 to 6 furrows
- Decreases fuel consumption by modern ploughing
- Consistent depth control by an adjustable wheel
- Merge of the Light weight and the robust design: different chassis options according to the tractor power
- UNLU heat treatment for the best steel endurance and toughness
- Selection of the best steel raw material according to the place of use on the plough
- Extra enduring electrostatic powder coating application
- Optional disc coulter for a flawless furrow
- Optional slatted mouldboard for high clay content soils and excellent burying of crop residues
- Strong plough legs for hardest conditions
- Easy adjustable user-friendly skimmers as optional equipment
TECHNICAL DATA
FEATURES
OPTIONS
PHOTO GALLERY
VIDEO
BROCHURE
TECHNICAL DATA
 Numbers of Furrows |
 Working Width |
 Chassis Thickness |
 Distance Between Furrows |
 Required HP |
 Total Weight |
 Total Working Width |
 Underbeam Clearance |
 Working Depth |
 Total Height |
 Total Length |
 Total Width |
| 4 | 15″ | 120 x 120 | 95 | 90-140 | 1510 | 1200-1800 | 780-850 | 330-380 | 1689 | 4797 | 2493 |
| 4 | 16″ | 120 x 120 | 95 | 100-150 | 1590 | 1200-1800 | 800-870 | 350-400 | 1689 | 4947 | 2577 |
| 4 | 15″ | 140 x 140 | 100 | 90-140 | 1540 | 1200-1800 | 780-850 | 330-380 | 1689 | 4742 | 2191 |
| 4 | 16″ | 140 x 140 | 105 | 100-150 | 1620 | 1200-1800 | 800-870 | 350-400 | 1689 | 4931 | 3113 |
| 5 | 15″ | 140 x 140 | 100 | 140-180 | 1800 | 1500-2250 | 780-850 | 330-380 | 1689 | 5374 | 2853 |
| 5 | 16″ | 140 x 140 | 91,5 | 130-180 | 1850 | 1500-2250 | 800-870 | 350-400 | 1751 | 5805 | 2897 |
| 5 | 16″ | 140 x 140 | 105 | 140-200 | 1940 | 1500-2250 | 800-870 | 350-400 | 1770 | 5947 | 3082 |
| 6 | 15″ | 140 x 140 | 95 | 150-240 | 2400 | 1800-2700 | 780-850 | 330-380 | 1790 | 6617 | 3100 |
| 6 | 16″ | 140 x 140 | 100 | 200-300 | 2530 | 1800-2700 | 800-870 | 350-400 | 1800 | 6788 | 3455 |
FEATURES
Tension Lever
Adjusting Lever
Depth Control
Backside Sinking Control
Depth control dampers can be adjusted by turning the screw head and locked via bolt during the operation.
Side Shift Head
Placement to Sides
Mechanically shiftable feature enables you to position the head
Width Adjustment
Adjusting Eyes
There are 4 adjusting eyes with which the working width can be set manually.
HydraSafe
Stone Release System
Hydraulic stone release system protects plough and mouldboard body while you encounter a large stone mass to be avoided.
Wheel Body
Backside Sinking Control
The wheel can be adjusted via adjusting dampers. Thus, the maximum sinking depth on the back of the plough is set
OPTIONS
Central Rotation
Hydraulic Alignment for Rotation
This system aligns the plough in central position when turning and allows an easy and smooth rotation side to side.
Disc Coulter
Cutting a Clean Furrow Side
For a perfect and clean furrows.
Slatted Body
Slatted Mouldboard
A slatted mouldboard facilitate your operation in heavy and sticky soil.
Trashboard
Clod Control
Enables to control excess clods.
Skimmers
Mini Mouldboards
For a clean operation skimmers control excess clods.
Extension Leg
+1 Flange Joint
The plough can be selected with +1 chassis extension.
