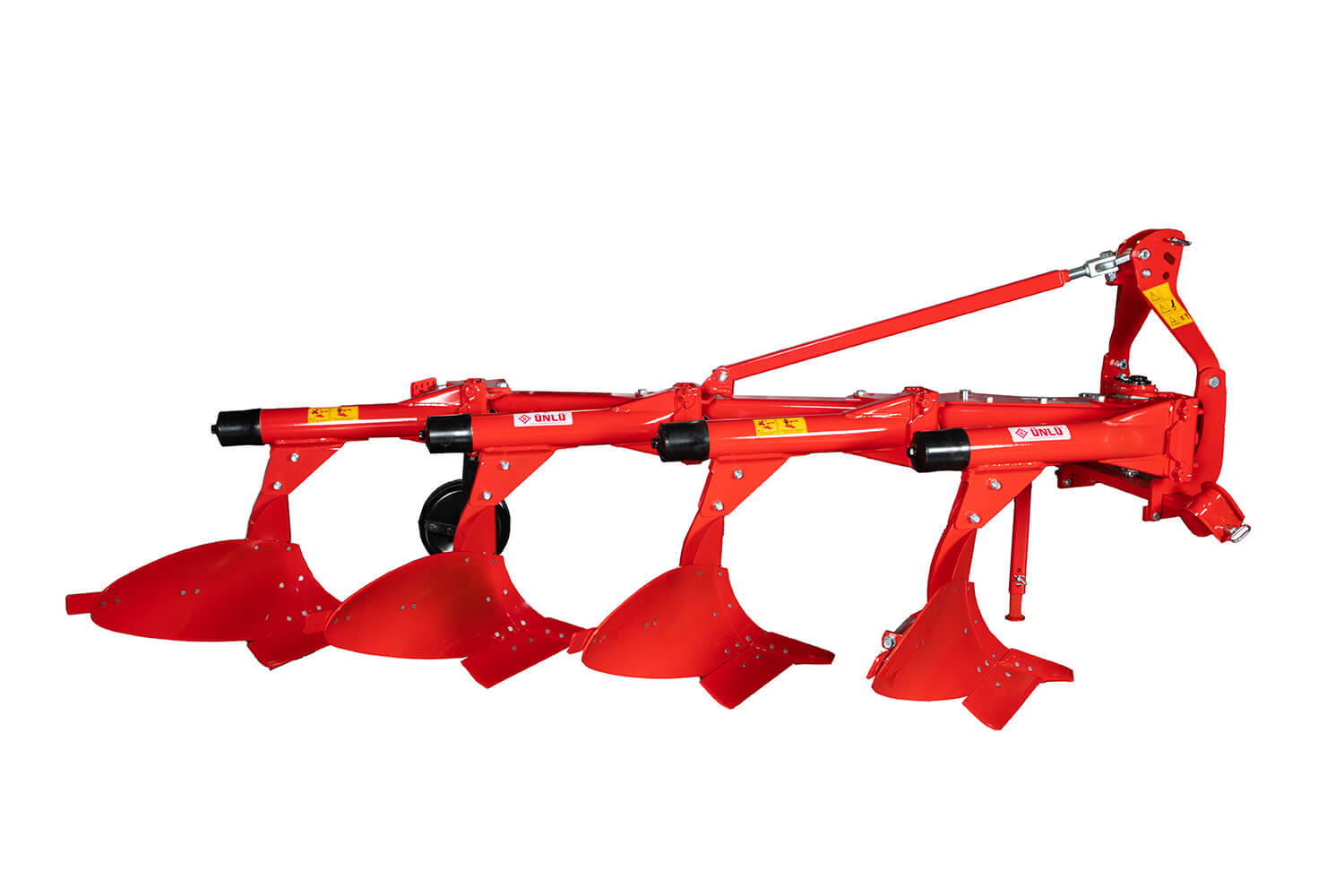

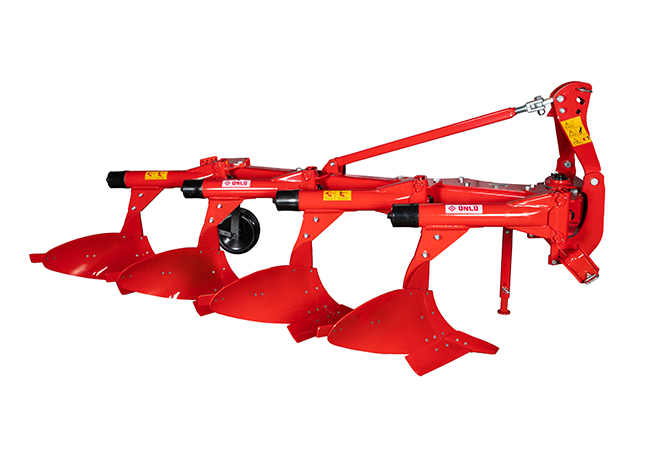

PROCYON MHL
Mounted Conventional On-Land Plough
Mid to light weight mounted conventional ploughs allow easy and practical agricultural practice. Bottom plough enables one-way ploughing. MHL designed for on-land ploughing.
BRAND:
UNLU
CATEGORY:
Conventional Series
SHARE:
Advantages
- HydraSafe hydraulic stone release system
- Mechanic furrow width adjustment system via an adjusting lever
- On-land ploughing
- Extra enduring electrostatic powder coating application
- Designed for small to medium lands on one-way and light weight ploughing.
- Saving extra weight by using various main frame sizes
- Seamless Steel Frame (no welding)
- Optional slatted mouldboard for high clay content soil and excellent burying of crop residues
- Extra life-span owing to the UNLU steel heat treatment technology
TECHNICAL DATA
FEATURES
OPTIONS
PHOTO GALLERY
VIDEO
BROCHURE
TECHNICAL DATA
 Numbers of Furrows |
 Working Width |
 Chassis Thickness |
 Distance Between Furrows |
 Required HP |
 Total Weight |
 Total Working Width |
 Underbeam Clearance |
 Working Depth |
 Total Height |
 Total Length |
 Total Width |
| 4 | 14″ | 120 x 120 | 85 | 75-115 | 620 | 1200-1800 | 780-850 | 300-350 | 1530 | 4150 | 1880 |
| 4 | 16″ | 120 x 120 | 95 | 100-130 | 750 | 1200-1800 | 800-870 | 350-400 | 1570 | 4600 | 2100 |
| 5 | 14″ | 120 x 120 | 100 | 100-140 | 1110 | 1500-2250 | 780-850 | 300-350 | 1530 | 5312 | 2922 |
| 5 | 16″ | 120 x 120 | 100 | 110-150 | 1340 | 1500-2250 | 800-870 | 350-400 | 1570 | 5352 | 2962 |
| 4 | 14″ | 140 x 140 | 85 | 75-115 | 820 | 1200-1800 | 780-850 | 300-350 | 1530 | 4190 | 1920 |
| 4 | 16″ | 140 x 140 | 95 | 100-130 | 950 | 1200-1800 | 800-870 | 350-400 | 1570 | 4650 | 2150 |
| 5 | 14″ | 140 x 140 | 91 | 105-140 | 1290 | 1500-2250 | 780-850 | 300-350 | 1500 | 5282 | 2892 |
| 5 | 16″ | 140 x 140 | 100 | 120-160 | 1540 | 1500-2250 | 800-870 | 350-400 | 1570 | 5352 | 2962 |
| 6 | 14″ | 140 x 140 | 95 | 140-190 | 1550 | 1800-2700 | 780-850 | 300-350 | 1500 | 6895 | 3239 |
| 6 | 16″ | 140 x 140 | 105 | 160-210 | 1780 | 1800-2700 | 800-870 | 350-400 | 1570 | 6960 | 3304 |
FEATURES
Wheel Body
Backside Sinking Control
The wheel allows a stable ploughing and backside depth control via its adjusting eyes.
OPTIONS
Extension Body
+1 Flange Joint
The plough can be selected with +1 chassis extension.
Slatted Body
Slatted Mouldboard
A slatted mouldboard facilitate your operation in heavy and sticky soil.
Grill Mouldboard
Grill Mouldboard
A grill mouldboard facilitate your operation in heavy and sticky soil.
Trashboard
Clod Control
Enables to control excess clods.
Disc Coulter
Cutting a Clean Furrow Side
For a perfect and clean furrows.
