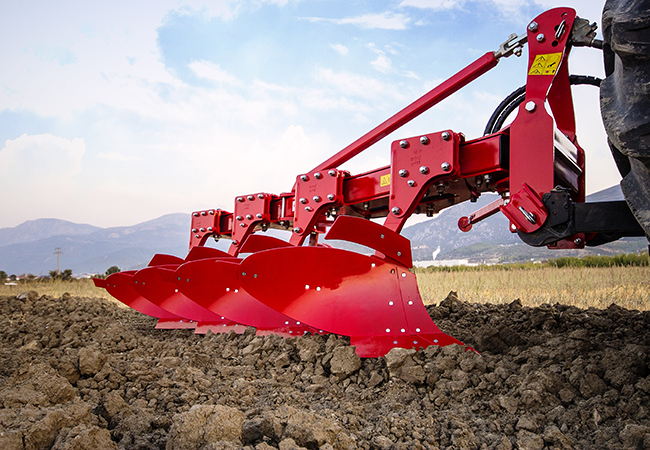

PROCYON V

Mounted Conventional Plough

Mid to light weight mounted conventional ploughs allow easy and practical agricultural practice. Bottom plough enables one-way ploughing.

BRAND:

UNLU

CATEGORY:

Conventional Series

VariPlus instant furrow width adjustment system
Extra enduring electrostatic powder coating application
Designed for small to medium lands on one-way and light weight ploughing

Saving extra weight by using 120 x 120mm (3-4 furrows) 140x120mm (5-6 furrows) main frame
Seamless Steel Frame (no welding)
Optional slatted mouldboard for high clay content soil and excellent burying of crop residues
Extra life-span owing to the UNLU steel heat treatment technology

TECHNICAL DATA

FEATURES

OPTIONS

PHOTO GALLERY

VIDEO

BROCHURE

TECHNICAL DATA

Numbers of Furrows	Working Width	Chassis Thickness	Distance Between Furrows	Required HP	Total Weight	Total Working Width	Underbeam Clearance	Working Depth	Total Height	Total Length	Total Width
3	14″	120 x 120	91,5	70-100	716	900-1350	780-850	300-350	1506	3100	1709
3	14″	120 x 120	95	70-100	724	900-1350	780-850	300-350	1506	3173	1693
3	16″	120 x 120	95	80-110	796	900-1350	800-870	350-400	1506	3286	1795
3	16″	120 x 120	105	80-110	808	900-1350	800-870	350-400	1506	3492	1755
4	12″	120 x 120	85	60-90	819	1200-1800	720-780	270-310	1506	3721	1664
4	14″	120 x 120	85	90-130	833	1200-1800	780-850	300-350	1506	3797	1685
4	16″	120 x 120	85	100-140	1164	1200-1800	800-870	350-400	1506	3844	1746
4	14″	120 x 120	91,5	90-130	850	1200-1800	780-850	300-350	1506	3987	1709
4	16″	120 x 120	91,5	100-140	975	1200-1800	800-870	350-400	1506	4102	1812
4	16″	120 x 120	95	100-140	982	1200-1800	800-870	350-400	1506	4211	1795
5	12″	120 x 120	85	100-140	1000	1500-2250	720-780	270-310	1506	4547	1874
5	14″	120 x 120	85	115-155	1019	1500-2250	780-850	300-350	1506	4624	1878
5	16″	120 x 120	85	130-170	1366	1500-2250	800-870	350-400	1506	4700	1886
5	14″	120 x 120	91,5	115-155	1039	1500-2250	780-850	300-350	1506	4876	1933
5	16″	120 x 120	91,5	130-170	1171	1500-2250	800-870	350-400	1590	5000	2035
5	16″	120 x 120	105	130-170	1221	1500-2250	800-870	350-400	1590	1221	2089
4	14″	140 x 120	85	90-130	883	1200-1800	780-850	300-350	1506	3796	1685
4	14″	140 x 120	91,5	90-130	890	1200-1800	780-850	300-350	1506	3938	1685
4	15″	140 x 120	95	95-135	933	1200-1800	780-850	300-350	1590	4122	1690
4	16″	140 x 120	91,5	100-140	1003	1200-1800	800-870	350-400	1506	4100	1812
5	14″	140 x 120	85	115-155	1085	1500-2250	780-850	300-350	1600	4630	1897
5	14″	140 x 120	91,5	115-155	1100	1500-2250	780-850	300-350	1600	4837	1906
5	14″	140 x 120	95	115-155	1105	1500-2250	780-850	300-350	1600	4986	1900
6	14″	140 x 120	85	140-180	1300	1800-2700	780-850	300-350	1600	5454	2107
6	14″	140 x 120	91,5	140-180	1300	1800-2700	780-850	300-350	1600	5774	2156
6	14″	140 x 120	95	140-180	1320	1800-2700	780-850	300-350	1600	5800	2200
6	16″	140 x 120	95	160-200	1460	1800-2700	800-870	350-400	1600	5900	2500
5	14″	140 x 140	85	115-155	1087	1500-2250	780-850	300-350	1600	4614	1774
5	14″	140 x 140	91,5	115-155	1096	1500-2250	780-850	300-350	1600	4891	1935
5	16″	140 x 140	91,5	130-170	1219	1500-2250	800-870	350-400	1600	5005	2035
5	16″	140 x 140	95	130-170	1218	1500-2250	800-870	350-400	1600	5153	2035
5	16″	140 x 140	105	130-170	1245	1500-2250	800-870	350-400	1600	5572	1950
5	16″	140 x 140	110	130-170	1262	1500-2250	800-870	350-400	1600	5782	1903
6	14″	140 x 140	85	140-180	1274	1800-2700	780-850	300-350	1600	5460	2019
6	14″	140 x 140	91,5	140-180	1302	1800-2700	780-850	300-350	1600	5778	2156
6	16″	140 x 140	91,5	160-200	1449	1800-2700	800-870	350-400	1600	5877	2375
6	16″	140 x 140	95	160-200	1562	1800-2700	800-870	350-400	1600	5950	2505
