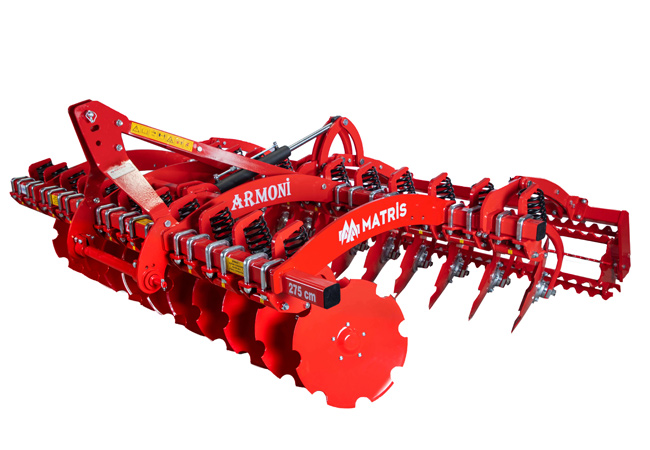

ARMONI RUBBER 62
BRAND:
MATRİS
CATEGORY:
DIsc Harrows
SHARE:
Fields of Usage
- Used in stubble and deep soil processing
- Breaks the hard layer below the plow depth
- Fertilizer types are mixed in the soil.
Advantages
- Used as a primary tool in seed bed preparation
- Breaks top-soil layers
- Increases the fertility of the soil as it loosens the soil without turning it over
- With the spring leg connections, only the disc that is exposed to the external factors is deactivated and when it gets rid of the effect, it continues to work thanks to the spring assembly
- Less towing power and energy consumption
- Safe and reliable operation
- Except for the chassis, bolts and pins, all our equipment parts are subjected to heat treatment to increase flexibility and durability
TECHNICAL DATA
FEATURES
OPTIONS
PHOTO GALLERY
VIDEO
BROCHURE
TECHNICAL DATA
 |
 |
 |
 |
 |
 |
 |
 |
ARMONI DISC HARROW |
|||||||
| 16 | 62 | – | 925 | 2000 | 750 | 65-75 | 250 |
| 18 | 62 | – | 1010 | 2250 | 750 | 75-85 | 250 |
| 20 | 62 | – | 1155 | 2500 | 750 | 85-95 | 250 |
| 22 | 62 | – | 1245 | 2750 | 750 | 95-105 | 250 |
| 24 | 62 | – | 1360 | 3000 | 750 | 105-120 | 250 |
| 26 | 62 | – | 1470 | 3250 | 750 | 120-140 | 250 |
| 28 | 62 | – | 1570 | 3500 | 750 | 130-150 | 250 |
| 32 | 62 | – | 1900 | 4000 | 750 | 155-180 | 250 |
|
|
|||||||
| 16 | 62 | Roller | 1165 | 2000 | 750 | 65-75 | 250 |
| 18 | 62 | Roller | 1265 | 2250 | 750 | 75-85 | 250 |
| 20 | 62 | Roller | 1425 | 2500 | 750 | 85-95 | 250 |
| 22 | 62 | Roller | 1540 | 2750 | 750 | 95-105 | 250 |
| 24 | 62 | Roller | 1685 | 3000 | 750 | 105-120 | 250 |
| 26 | 62 | Roller | 1835 | 3250 | 750 | 120-140 | 250 |
| 28 | 62 | Roller | 1925 | 3500 | 750 | 130-150 | 250 |
| 32 | 62 | Roller | 2270 | 4000 | 750 | 155-180 | 250 |
|
|
|||||||
| 16 | 62 | Hyd.Double Roller | 1425 | 2000 | 750 | 65-75 | 250 |
| 18 | 62 | Hyd.Double Roller | 1540 | 2250 | 750 | 75-85 | 250 |
| 20 | 62 | Hyd.Double Roller | 1715 | 2500 | 750 | 85-95 | 250 |
| 22 | 62 | Hyd.Double Roller | 1855 | 2750 | 750 | 95-105 | 250 |
| 24 | 62 | Hyd.Double Roller | 2020 | 3000 | 750 | 105-120 | 250 |
| 26 | 62 | Hyd.Double Roller | 2220 | 3250 | 750 | 120-140 | 250 |
| 28 | 62 | Hyd.Double Roller | 2300 | 3500 | 750 | 130-150 | 250 |
| 32 | 62 | Hyd.Double Roller | 2650 | 4000 | 750 | 155-180 | 250 |
FEATURES

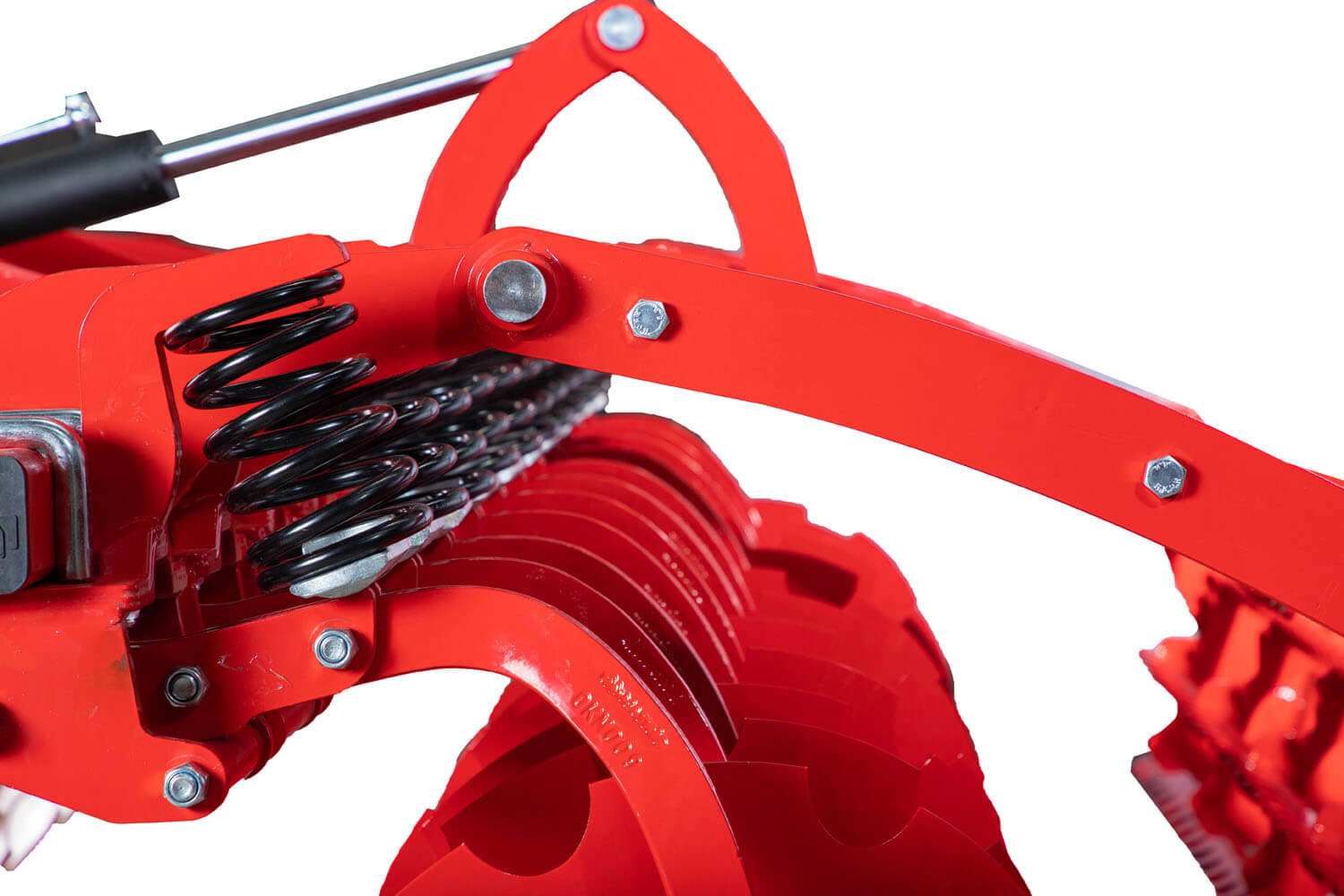

The space between the springs in the spring system is 2 cm
The space between the springs in the spring system is 2 cm
The space between the springs in the spring system is 2 cm
The spring closing distance is 8 cm
The spring closing distance is 8 cm
The spring closing distance is 8 cm
Disc cross is 18 °
Disc cross is 18 °
Disc cross is 18 °
Each disc has a self-lubricating bearing
Each disc has a self-lubricating bearing
Each disc has a self-lubricating bearing
