The plough can be kept in a stable position against side movements due to land conditions.
Numbers of Furrows | Working Width | Chassis Thickness | Distance Between Furrows | Required HP | Total Weight | Total Working Width | Underbeam Clearance | Working Depth | Total Height | Total Length | Total Width |
3 | 14″ | 120 x 120 | 85 | 70-100 | 900-1350 | 780-850 | 300-350 | 1700 | 3950 | 1625 | |
3 | 14″ | 120 x 120 | 91,5 | 70-100 | 900-1350 | 780-850 | 300-350 | 1700 | 3950 | 1625 | |
3 | 16″ | 120 x 120 | 91,5 | 80-110 | 900-1350 | 800-870 | 350-400 | 1700 | 4055 | 1757 | |
3 | 14″ | 120 x 120 | 95 | 70-100 | 900-1350 | 780-850 | 300-350 | 1700 | 3950 | 1625 | |
3 | 16″ | 120 x 120 | 95 | 80-110 | 900-1350 | 800-870 | 350-400 | 1700 | 4055 | 1757 | |
4 | 14″ | 120 x 120 | 85 | 90-130 | 1200-1800 | 780-850 | 300-350 | 1700 | 4628 | 1790 | |
4 | 14″ | 120 x 120 | 91,5 | 90-130 | 1200-1800 | 780-850 | 300-350 | 1700 | 4838 | 1790 | |
4 | 16″ | 120 x 120 | 91,5 | 100-140 | 1200-1800 | 800-870 | 350-400 | 1700 | 4980 | 2000 | |
4 | 14″ | 120 x 120 | 95 | 90-130 | 1200-1800 | 780-850 | 300-350 | 1700 | 4838 | 1790 | |
4 | 16″ | 120 x 120 | 95 | 100-140 | 1200-1800 | 800-870 | 350-400 | 1700 | 4980 | 2000 | |
4 | 16″ | 140 x 140 | 95 | 100-140 | 1810 | 1200-1800 | 800-870 | 350-400 | 1700 | 4980 | 2000 |
4 | 16″ | 140 x 140 | 105 | 100-140 | 1850 | 1200-1800 | 800-870 | 350-400 | 1700 | 5145 | 2000 |
5 | 14″ | 140 x 140 | 91,5 | 115-155 | 1805 | 1500-2250 | 780-850 | 300-350 | 1700 | 5665 | 1976 |
5 | 16″ | 140 x 140 | 91,5 | 130-170 | 2050 | 1500-2250 | 800-870 | 350-400 | 1700 | 5620 | 2200 |
5 | 14″ | 140 x 140 | 95 | 115-155 | 1825 | 1500-2250 | 780-850 | 300-350 | 1700 | 5945 | 1976 |
5 | 16″ | 140 x 140 | 95 | 130-170 | 2070 | 1500-2250 | 800-870 | 350-400 | 1700 | 5889 | 2200 |
5 | 14″ | 140 x 140 | 105 | 115-155 | 1850 | 1500-2250 | 780-850 | 300-350 | 1700 | 6295 | 1976 |
5 | 16″ | 140 x 140 | 105 | 130-170 | 2095 | 1500-2250 | 800-870 | 350-400 | 1700 | 6375 | 2200 |

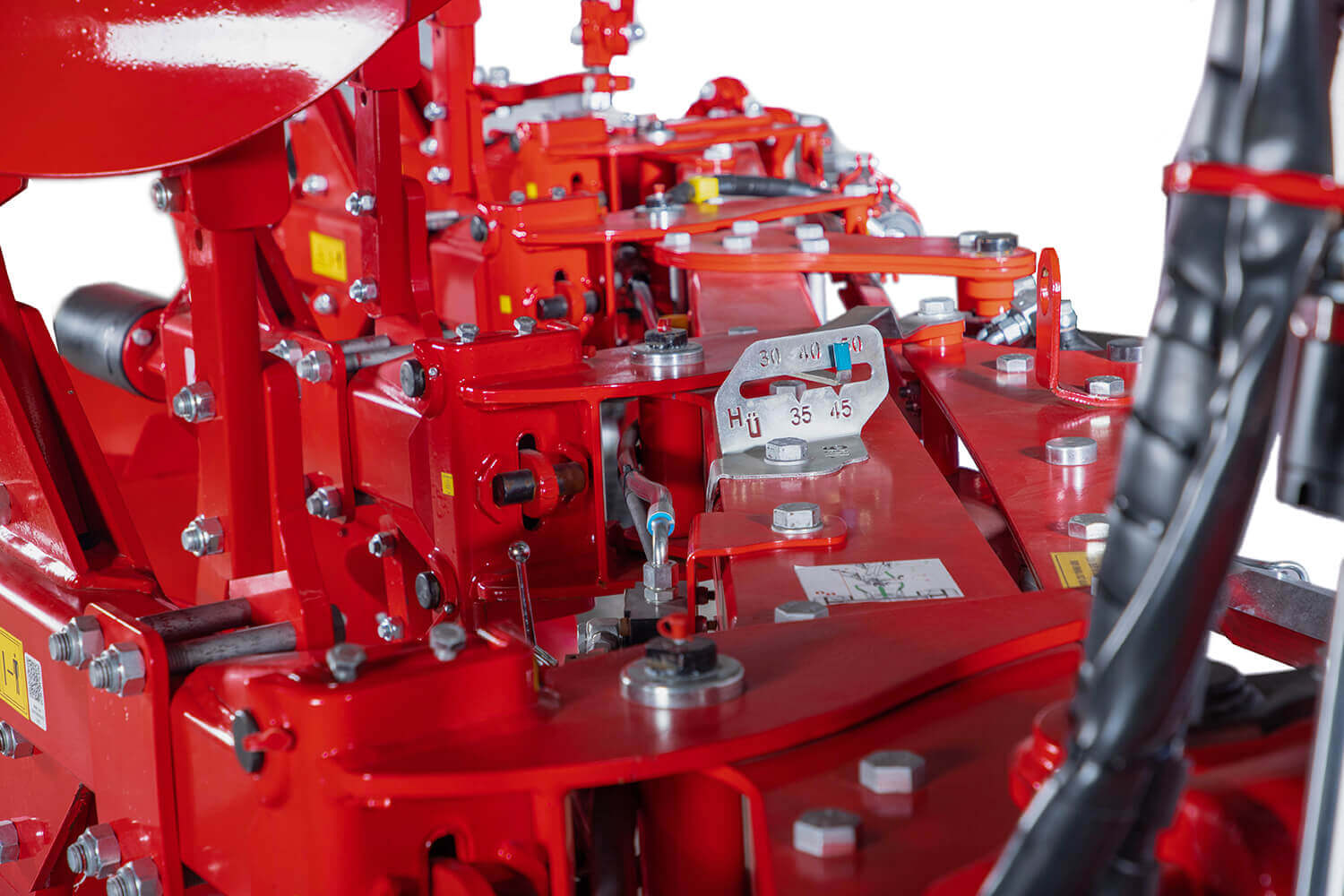

Adjusting Lever
The plough can be kept in a stable position against side movements due to land conditions.
Hydraulic Angle Settlement
Adjusting Dampers
Placement to Sides
Mechanically shiftable feature enables you to position the head
Stone Release System
Hydraulic Alignment for Rotation

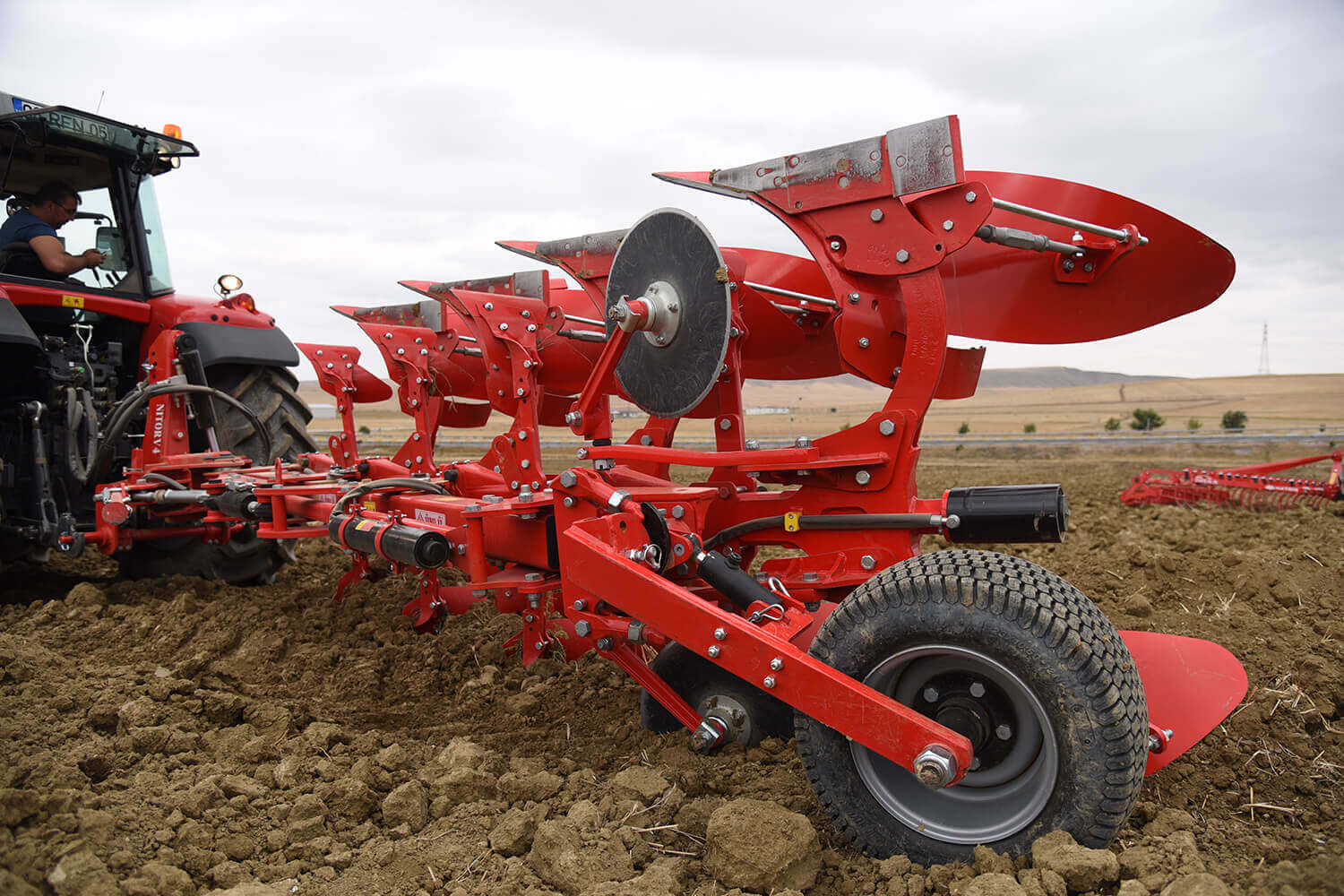

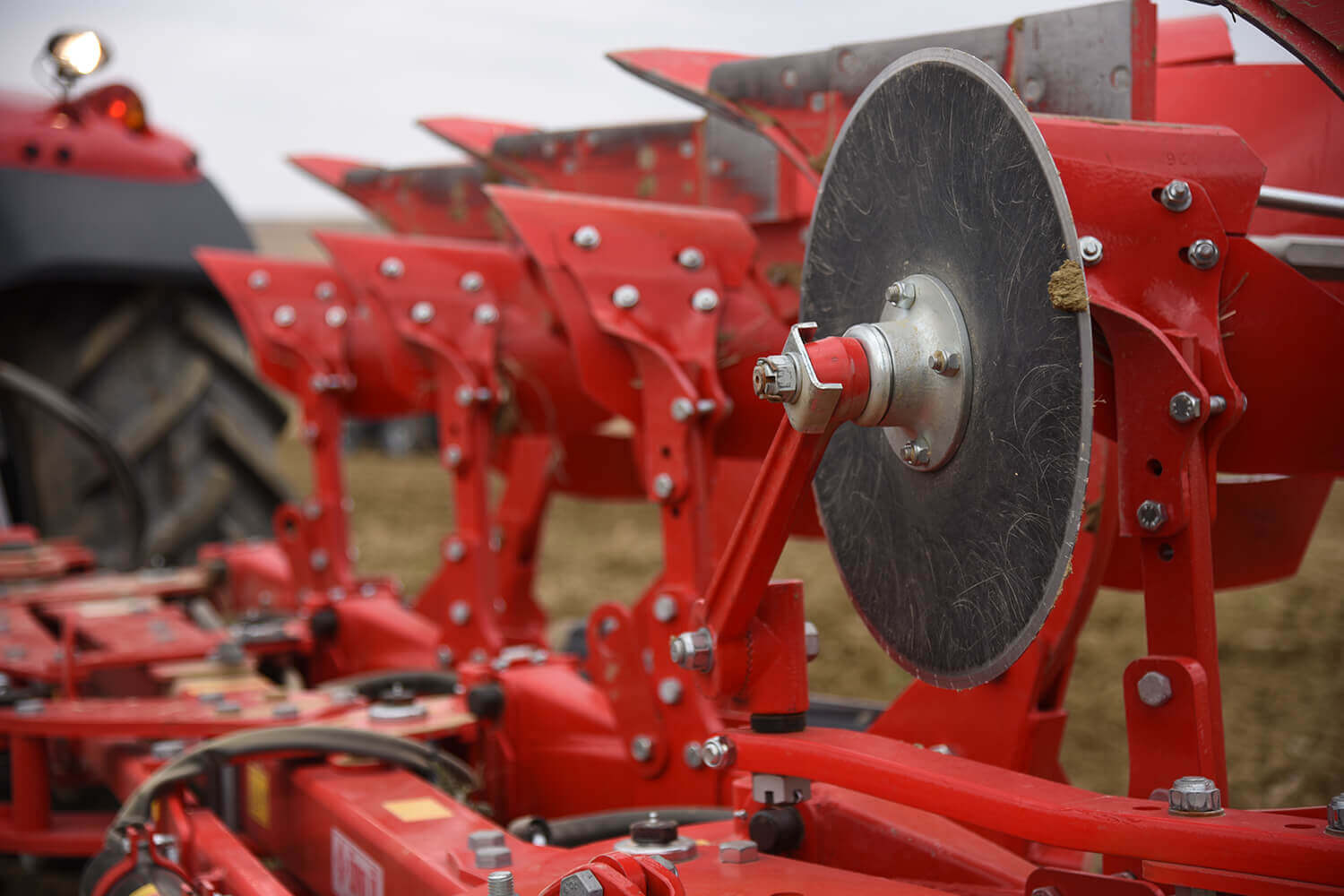

Cutting a Clean Furrow Side
Slatted Mouldboard
Clod Control
Mini Mouldboards
